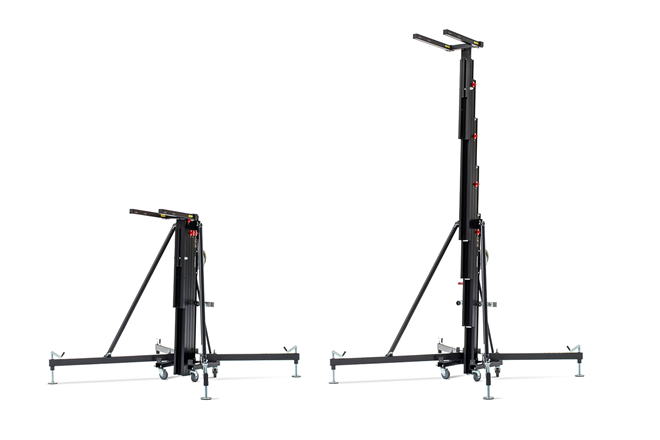

Elevate your line arrays up to 5.6m (18.5’) with the Mobiltechlifts ML3 lift. Providing superior lifting strength (260 kg / 573 lbs) in a small footprint, you are able to achieve wide dispersion and extensive coverage quickly and easily during live events. Safe and convenient attachment of hardware and truss at any position is ensured by its user-friendly loading system, even at almost ground level, thereby allowing crews to work faster and more safely.
Key Benefits:• Pin locking system and spring key serve as a secondary safety feature when lifting
• Increased spacing between manual hand winch and cable feed from roller ensures proper winding on winch drum
• Firmly secures 4 legs and 2 stabilizer tubes
• Telescopic outriggers increase practicality and improve stability
• Rubber feet on the outriggers protect all surfaces from damage and provide increased friction
• Integrated wheels with brakes for added safety
• Bubble level for convenient leveling
• Plastic cushions on the lift’s body prevent damage to the mast
• Height indicator
• Top mast attachment points
• Optional winch cover
• Manual screw for reducing mast movement and adding additional safety
• Complies with DGUV-17
• TUV Nord Certified
Technical Specifications:
Load: 260 kg (573 lbs)
Weight: 124 kg (273 lbs)
Max. Height: 5.6 m (18.5')
Min. Height: 1.78 m (5.84')
Footprint: 2 x 1.8 m (6.5' x 6')
